WATER METERS
Cordonel Static Ultrasonic water meter (Sizes DN 50-100 mm):
Approvals:
- Metrology DE-19-MI001-PTB008
- Marking CE M-XX* 0102 (*year of conformity assessment)
- Potable Water KTW / DVGW
- WRAS
- ACS
- KIWA
Sensus a Xylem Brand. Sensus established in 1843 has an experience of 180 years of producing quality & robust water meters.

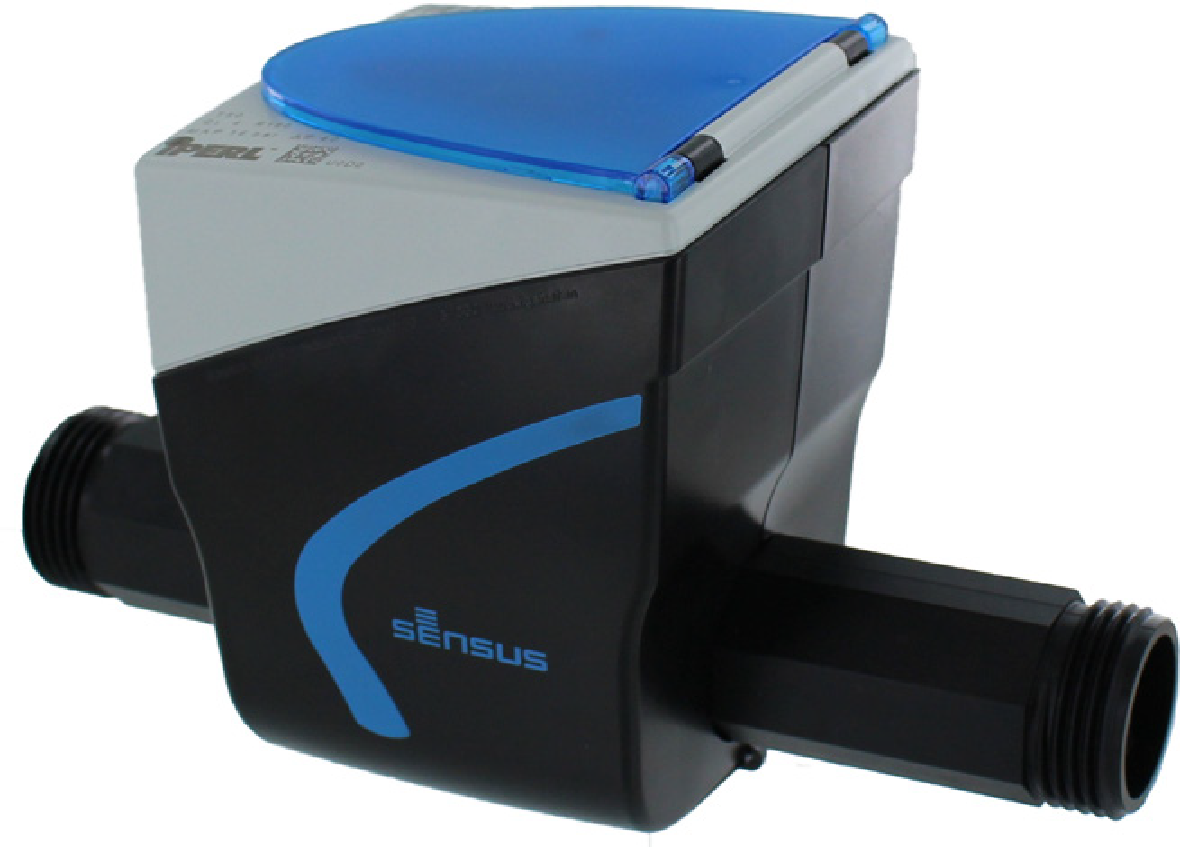

Sensus Iperl Static electromagnetic water meter with remnant magnetic technology (sizes DN15-40 mm):
- 2014/32/EU (MID)
- OIML R49
- EN 14154-4
- ISO 4064
- EN 14268
- WELMEC
- 2014/53/EU (RED)

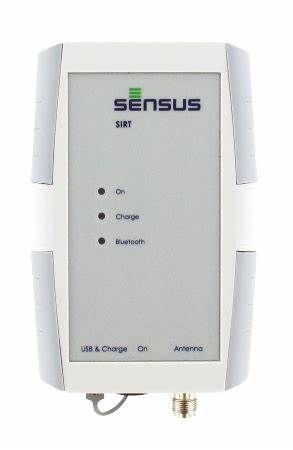

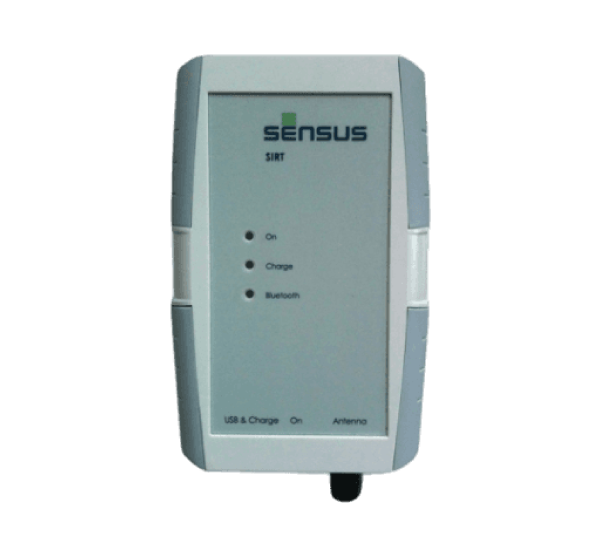

The Sensus Interface Radio Tool (SIRT) is a battery-powered radio transceiver modem used to communicate with Sensus RF and Wireless M-Bus capable meters.
- SIRT 868 MHz - order no. 04410531
- (SIRT 433 MHz - order no. 04410538)
- SIRT radio modem with internal antennas
- USB cable with Mini B- and Type A-plug
- 100-240V 50/60Hz to USB 5V/1A mains power supply with European C-type plug
Accessories:
- External car antenna
- 868 MHz order no. 04410534
- (433 MHz order no. 04410537)

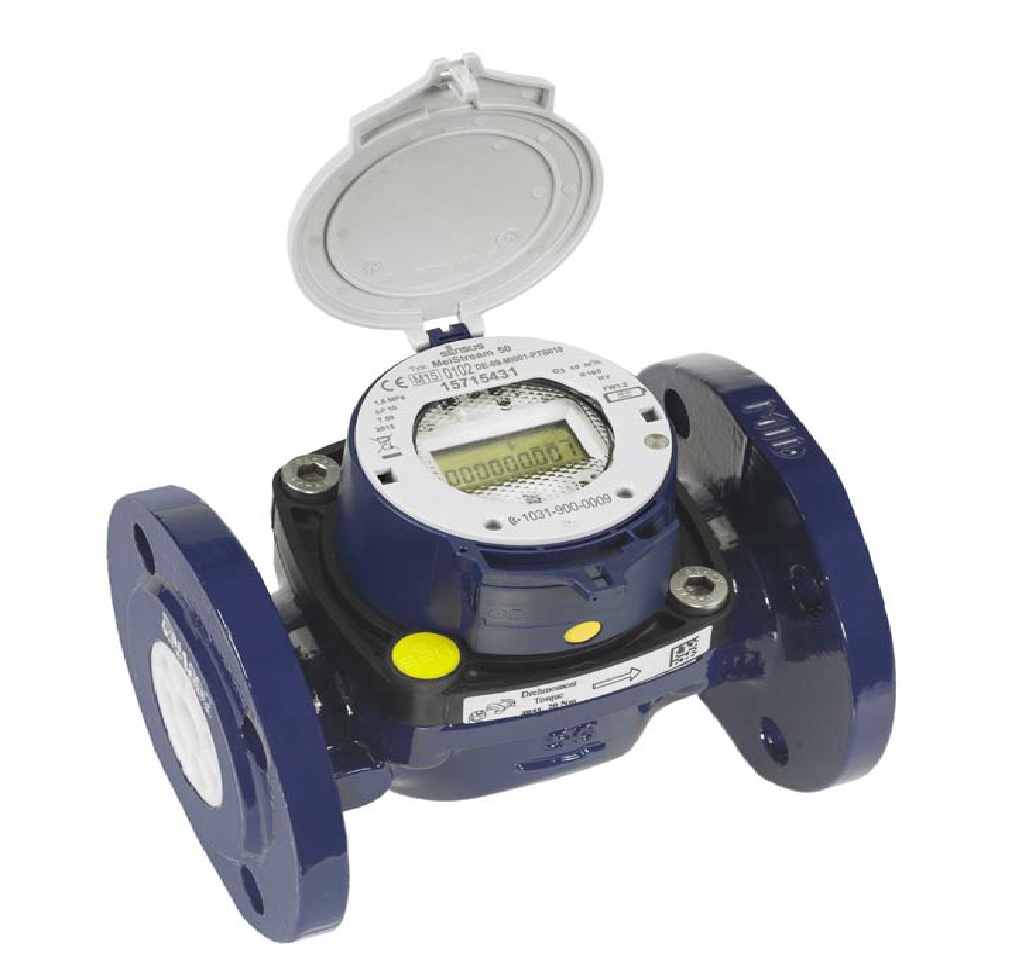

MeiStreamRF (Sizes DN 40-300 mm) merges the high overload capability and stable measuring curve of the Woltman WP meter with the low flow performance of Woltman WS meter into an excellent reliable meter equipped with radio for walk-by / drive-by.
- Industrial Water Meter With a Electronic Register
- Radio equipped water meter for walk-by/drive-by readout applications
- Metering endpoint in radio based Smart Water Networks
- Measurement for billing of potable water up to 50 °C
- Measurement of high flowrates e.g., in pumped pipes
- Measurement of low flow e. g. in light load periods for leakage detection

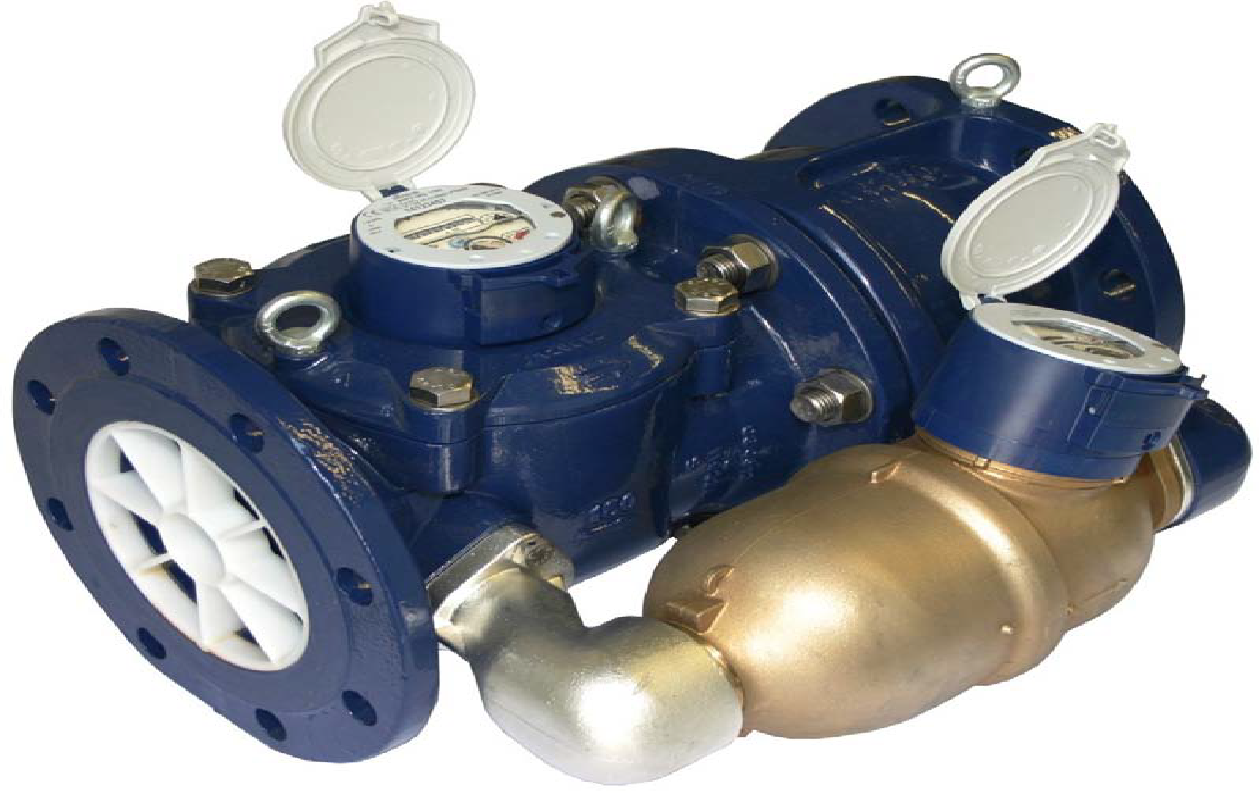

MeiTwin® MID. Compound Water Meter with Widespread Flow Profiles. Sizes (DN 50-100 mm)
With the MeiTwin compound water meter there is no longer any need for the differentiation between the “by-pass meter on the right” and “by-pass meter on the left”.
- Measurement of high flow rates with extremely wide spread flow profile
- Measurement of very small flow rates for leakage detection
- Ideal for fire service pipes

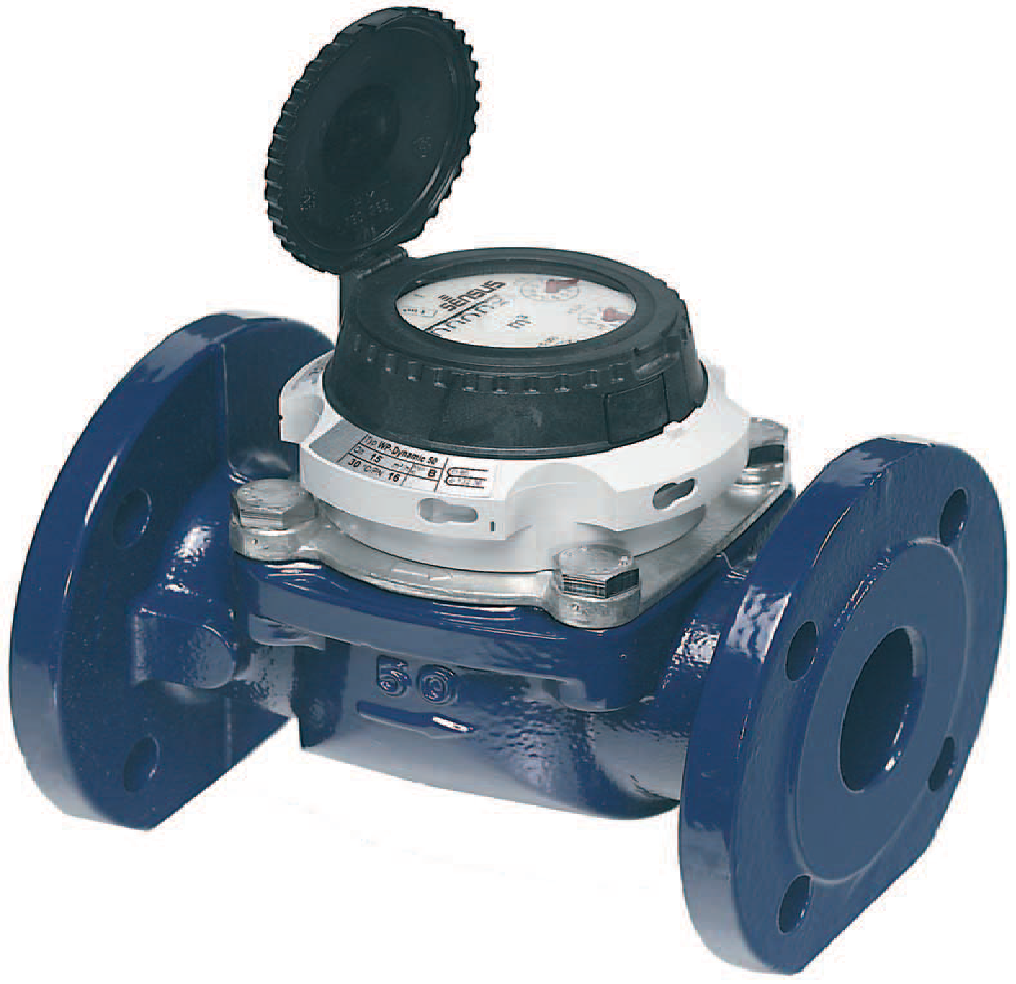

WP-Dynamic. Turbine Water Meter for High Constant Flow Rates (sizes DN 400 mm). The WP-Dynamic is the ideal solution for the measurement of high, relatively constant flow rates, e.g., behind pumps.
- Hermetically sealed register (IP 68)
- Register may be rotated through 355°
- High overload capability
- Interchangeable measuring element
- Powder coating provides max. corrosion protection
- Not affected by external magnetic fields
WPV-MS 150. Compound Water Meter for cold water up to 50 ºC DN 150 mm.
Main and bypass meter equipped with pulse and data interface HRI-Mei and / or pulse module type OD (with bypass meter RK-MS HRI).
- Measurement of high flow rates with extremely widespread flow profile
- Measurement of smallest flow rates for leakage detection
- Ideal for fire service pipes
620C/620MC Water Meter (Sizes DN 15-20mm).
Residential high-accuracy meter with piston measuring chamber. The 620C/620MC is a high precision meter. Due to its unique piston measuring chamber even drops of water are registered. The 620C/620MC assures a long lasting stable metrology.
Main characteristics:
- DN 15 to 20, PN16
- Light and easy to handle.
- Compatibility with all new and planned regulations for potable water
- Unrivalled accuracy and measuring range
- High resistance to impurities and aggressive water
- Quiet operation

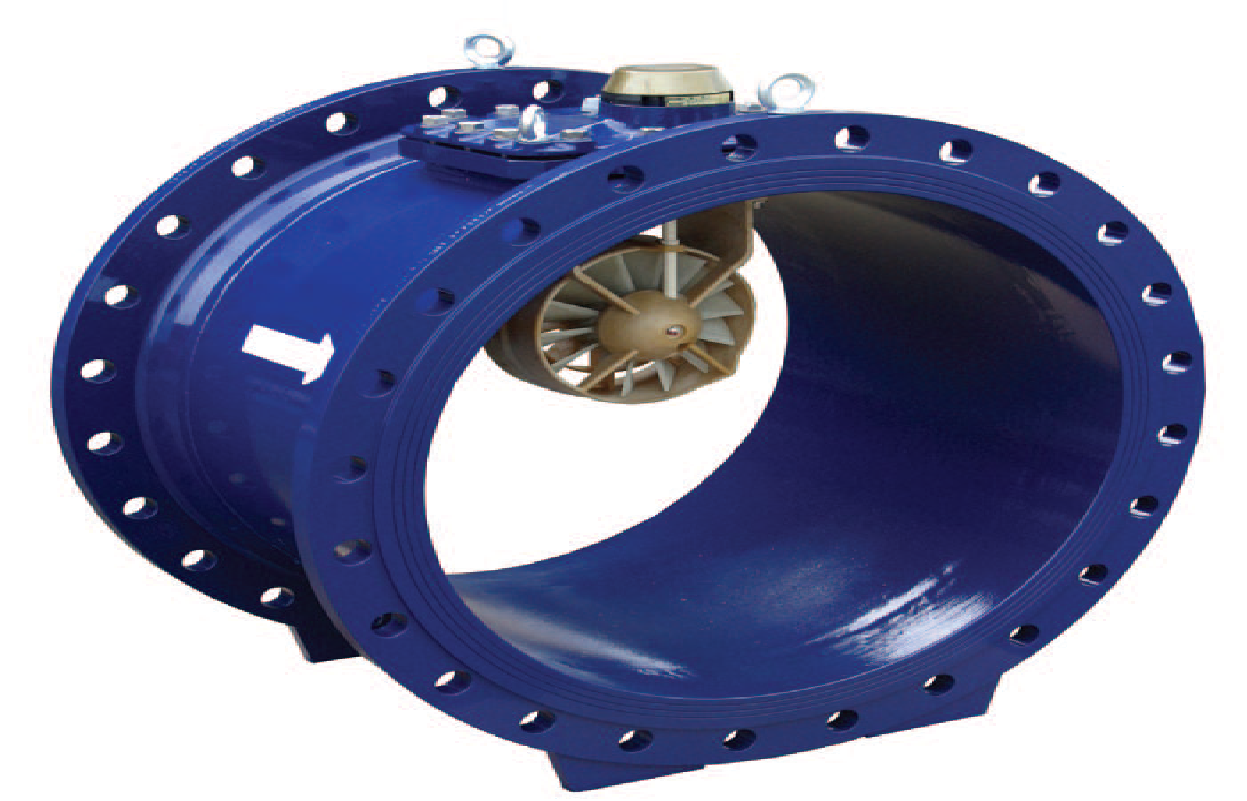

WP QF (Size DN 500 mm). Turbine Water Meter for Cold and Hot Water.
- Measurement of high, relatively constant flow rates in long distance pipes.
- Sealed water-proof register (IP 67)
- Sealed register may be rotated through 355°
- Up to 3 pulsers can be fitted without breaking the meter seal
- Maximum corrosion protection by powder coating
- Not affected by external magnetic fields
- Interchangeable measuring element
- Performance data better than class B
